6U-22U Double Section Server Rack Wall Mount Cabinet Network Cabinet
Regular price
$96.27
Sale price$84.05
Save $12.22
Tax included.
- Free worldwide shipping
- In stock, ready to ship
SPECIFICATIONS
Application: Network Cabling
Capacity: 6U/9U/12U/15U/18U/22U
Certification: ISO 9001:2015/CE/ROHS/REACH
Color: Black
Degree of protection: Wall Mounted Cabinet IP20
Feature: Wall Mounted Cabinet Rack
Package: Carton
Payment: T/T, L/C, Western Union
Port: Ningbo, China
Surface finish: Degreasing Picking Phosphating Powder Coated
brand name: WebiT
cabinet standard: ANSI/EIA, RS-310-D, ETSI
material: SPCC cold rolled steel
place of origin: Zhejiang, China
products status: Stock
size: 6U 600*550MM
6-22U Double Section Server Rack Wall Mount Cabinet

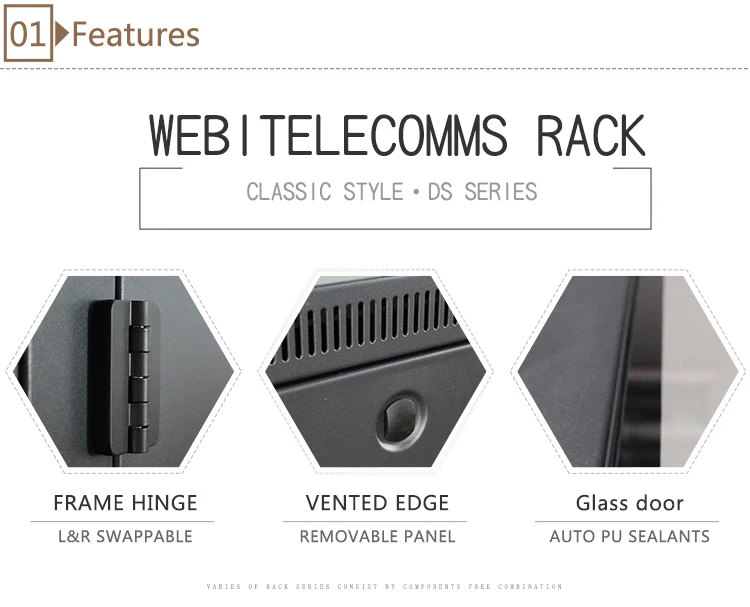

Features

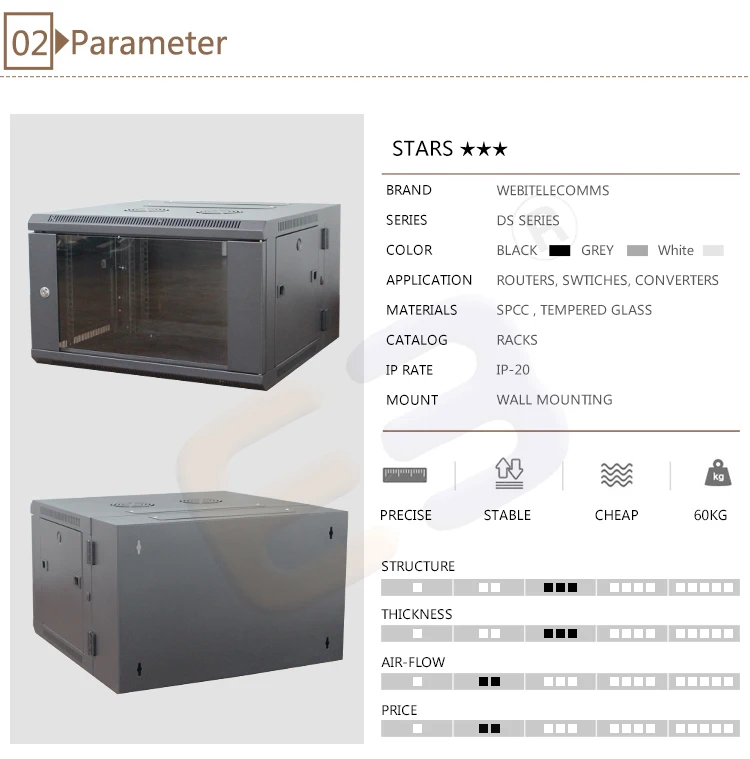

Parameter

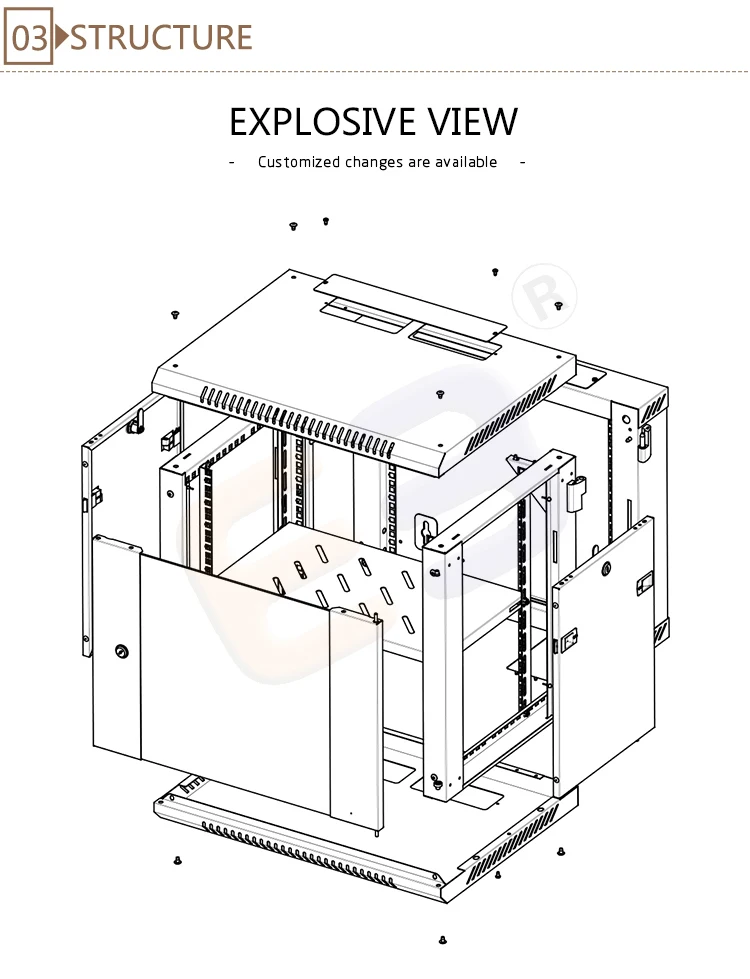

Structure
| NO. | Part Name | QTY | Unit | Materials | Treatment | Note |
| 1 | Frame | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
| 2 | Front Door | 1 | Piece | 5mm Tempered transparent glass | Powder coating | |
| 1.0mm SPCC cold rolled steel | ||||||
| 3 | Side Door | 2 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
| 4 | Back section | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
| 5 | Bottom | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
| 6 | Top | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
| 7 | Mounting Profile | 4 | Piece | 1.5mm SPCC cold rolled steel | Powder coating | Can GE treated |
| 8 | Small lock | 2 | Piece | Zinc alloy | \ | Front & Back |
| 9 | Earthing Bolt | 1 | Piece | \ | \ | |
| 10 | Wiring Panel | 1 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | Screw M4 |
| 11 | M4&M5 cage | 20 | Set | Mn56 steel | Zinc plated | |
| 12 | M6 Screw | 20 | Set | Mn56 steel | Zinc plated | 10sets for extra |
| 13 | Quick open latcg | 4 | piece | Plastic | Powder coating | On side doors |

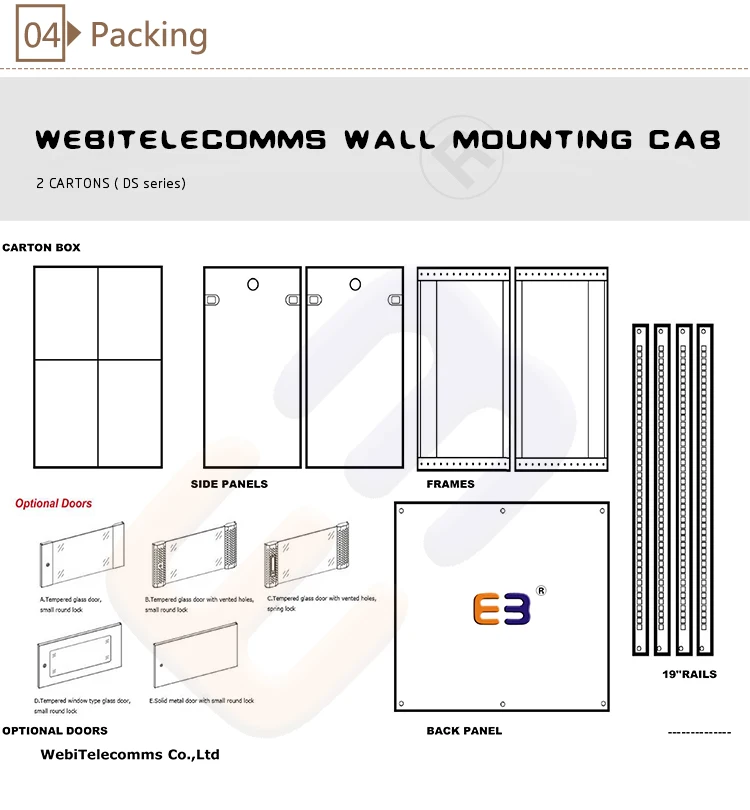

Packing
